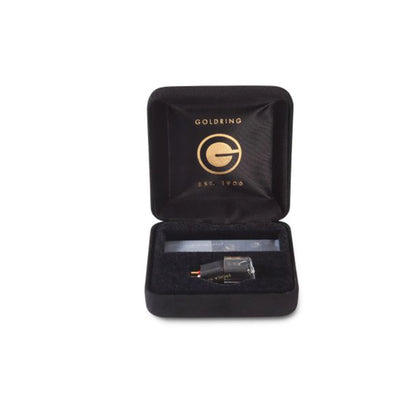

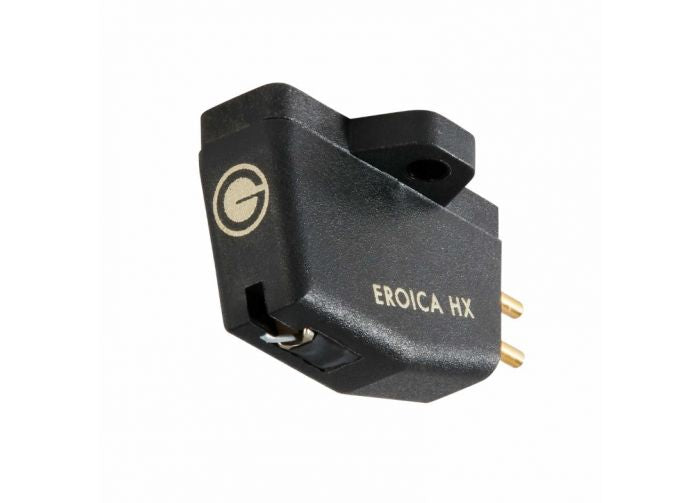

Goldring Eroica HX High-Output Moving Coil Cartridge

The Goldring Eroica HX is a high-output moving coil phono cartridge designed as a straightforward performance upgrade for vinyl systems. It combines many of the sonic benefits of a traditional moving coil design with output levels high enough to work with standard moving magnet phono inputs — meaning you can enjoy enhanced dynamics, improved stereo imaging, and controlled high frequencies without needing a dedicated MC phono stage.

Features

• High-output moving coil design – Delivers MC performance while remaining compatible with moving magnet inputs.
• Pure-iron cross-armature structure – Reduces effective mass and crosstalk for cleaner stereo separation.
• Ultra-fine enamelled copper windings – For higher output and correct impedance matching.
• Gyger II diamond stylus – Precision tracing with low distortion up to high frequencies.
• Light but rigid Pocan® housing – Reduces coloration and protects the delicate mechanism.
• Easy installation – Standard fitment for most tonearms with no additional adjustments needed.
• Wide tonearm compatibility – Works with straight, S-shaped, or J-shaped arms of various materials.

Specifications

• Frequency Response: 20 Hz – 20 kHz ± 3 dB
• Frequency Range: 10 Hz – 50 kHz
• Channel Balance: ≤ 1 dB @ 1 kHz
• Channel Separation: ≥ 25 dB @ 1 kHz
• Sensitivity: 2.5 mV ± 1 dB @ 5 cm/sec
• Static Compliance: 25 mm/N
• Trackability: 85 µm @ 315 Hz
• Equivalent Tip Mass: 0.4 mg
• Vertical Tracking Angle: 22°
• Stylus Type: Gyger II diamond (non-replaceable, re-tip service available)
• Load Resistance: 47 kΩ
• Load Capacitance: 100 – 500 pF
• Internal Resistance: 35 Ω
• Mass (body): 5.2 g
• Mass (inc. fixings): 6.6 g
• Fixing Centre: 12.7 mm (0.5 inch)
• Recommended Playing Weight: 1.5 – 2.0 g (nominal 1.75 g)
