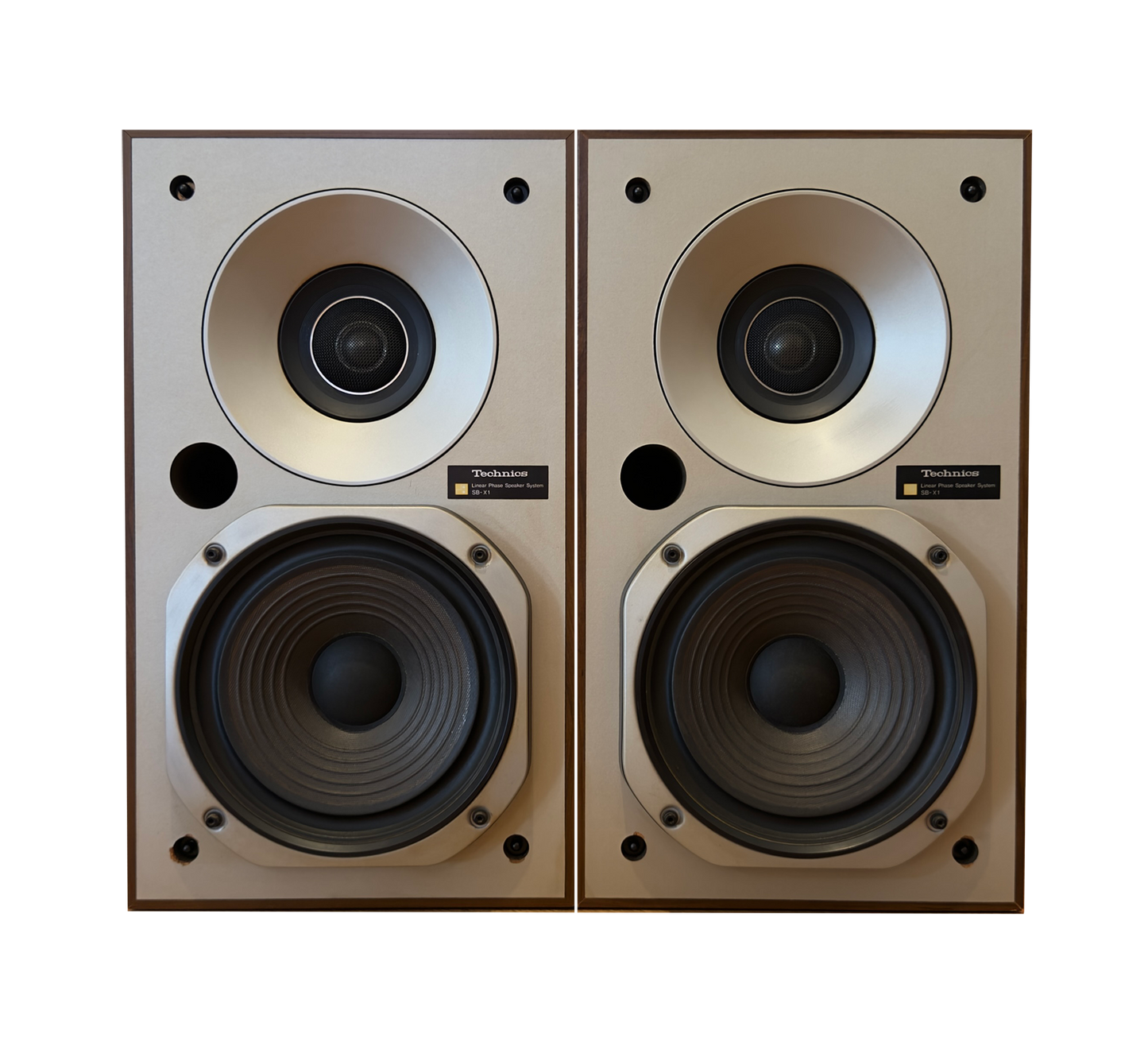

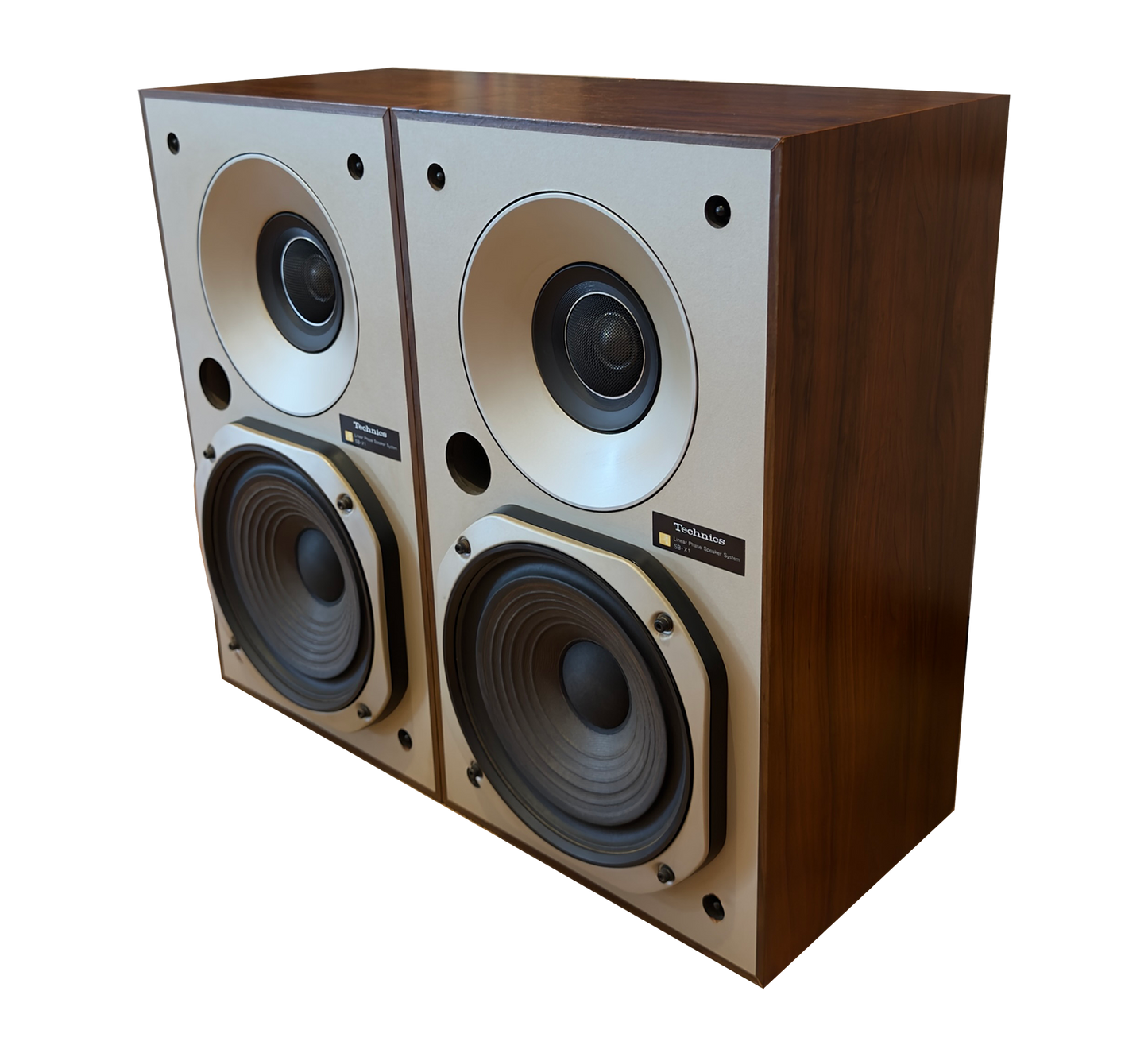

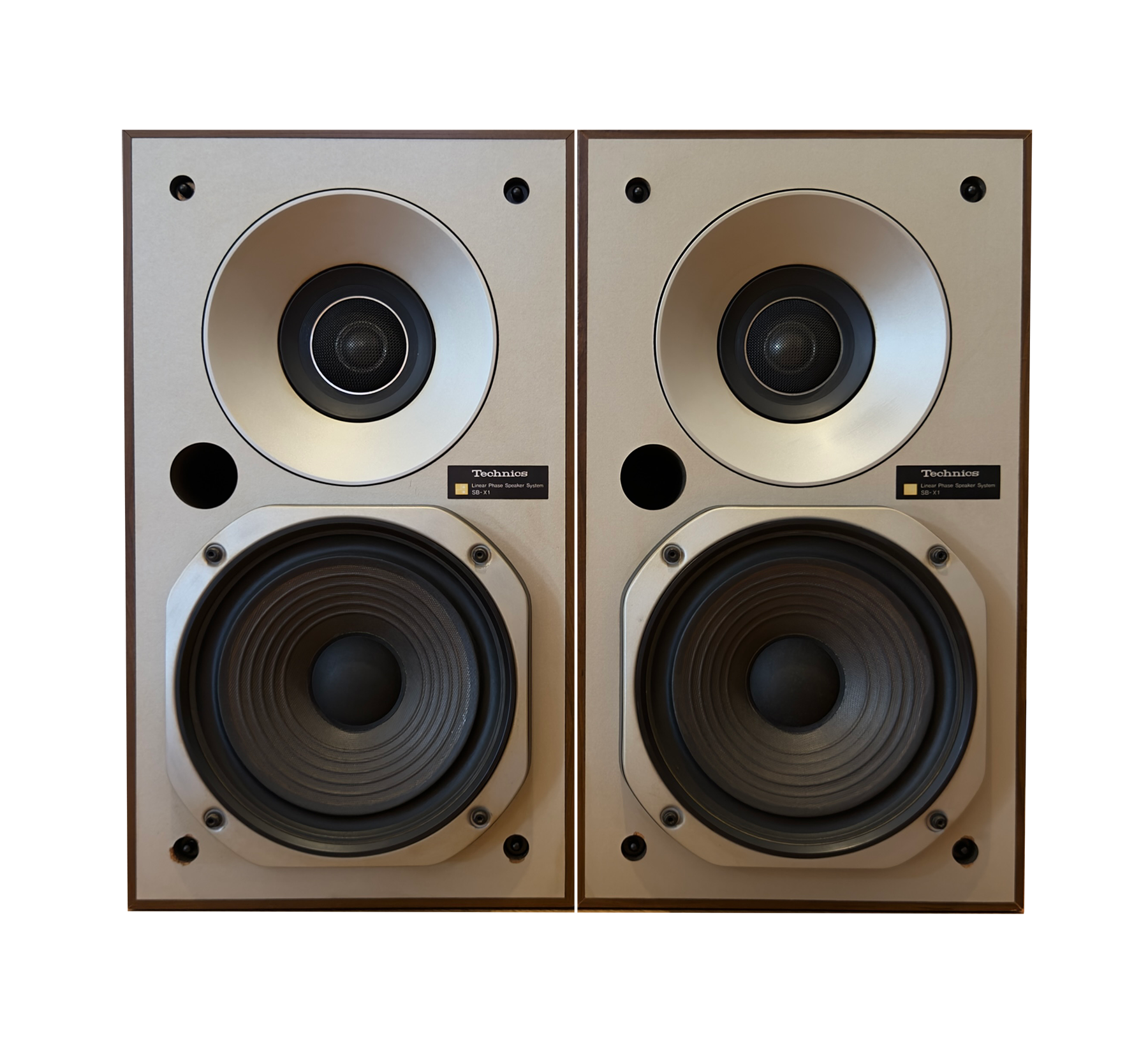

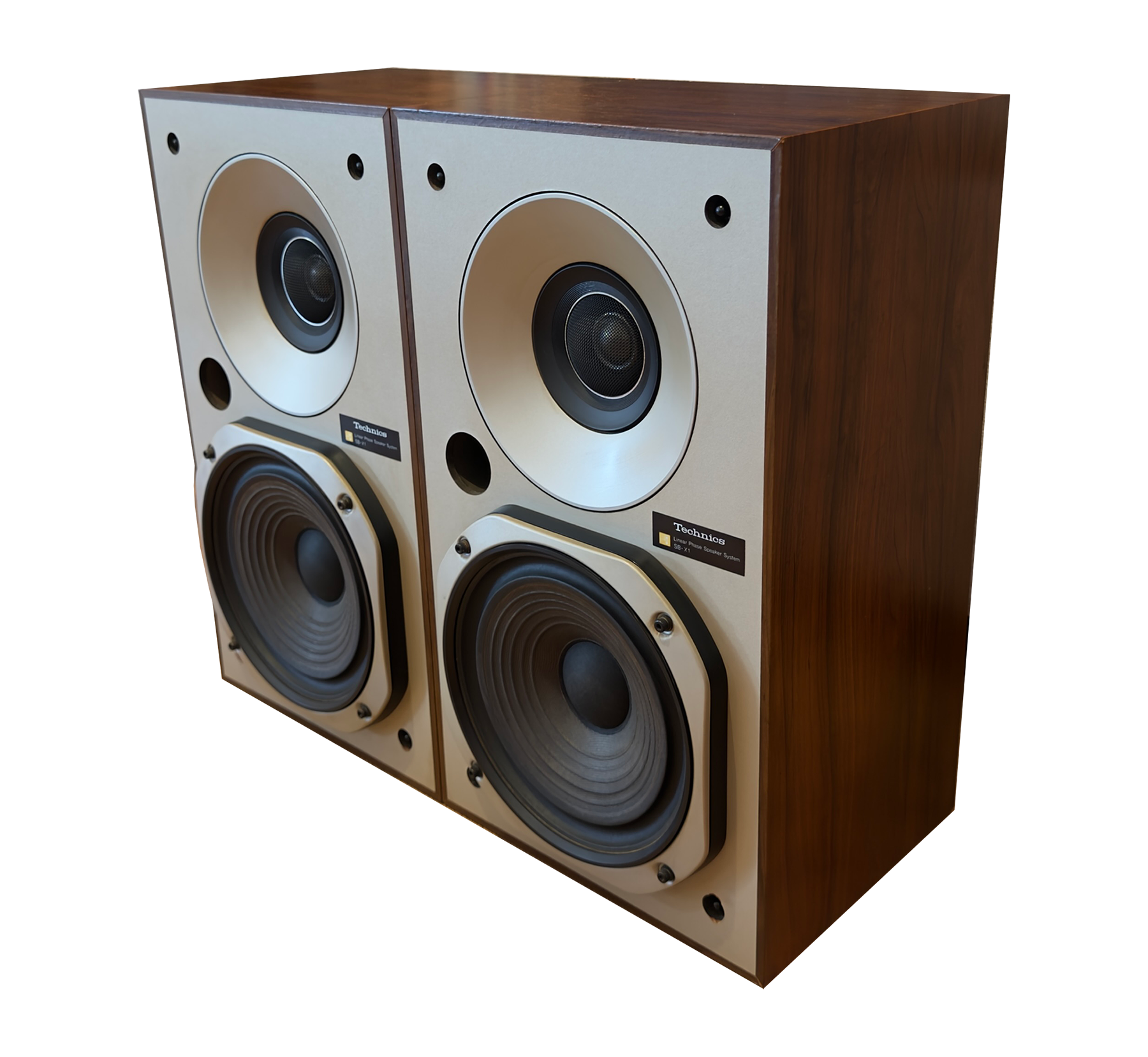

Technics SB-X1 Vintage Linear Phase Speakers

Overview

The Technics SB-X1 is a meticulously engineered 2-way bookshelf speaker system from the late 1970s, designed to deliver accurate and phase-coherent sound reproduction. Featuring a linear-phase design, these speakers ensure that audio signals across all frequencies reach the listener simultaneously, resulting in a natural and immersive listening experience.

Key Features

• Linear Phase Design: Incorporates a conical horn structure and precise driver alignment to achieve time-aligned sound delivery, enhancing imaging and spatial accuracy.

• 20 cm Aramid Fiber Cone Woofer: Utilizes a lightweight yet rigid aramid fiber diaphragm, aluminum voice coil bobbin, and heat-resistant materials to produce deep, controlled bass with minimal distortion.

• 2.5 cm Titanium Dome Tweeter: Employs an ultra-thin 15μm titanium diaphragm, combining the smoothness of soft domes with the clarity of hard domes, extending high-frequency response up to 20 kHz.

• Advanced Crossover Network: Features a delay device using a B.B.D. element to synchronize the output of the woofer and tweeter, maintaining consistent phase characteristics across the frequency spectrum.

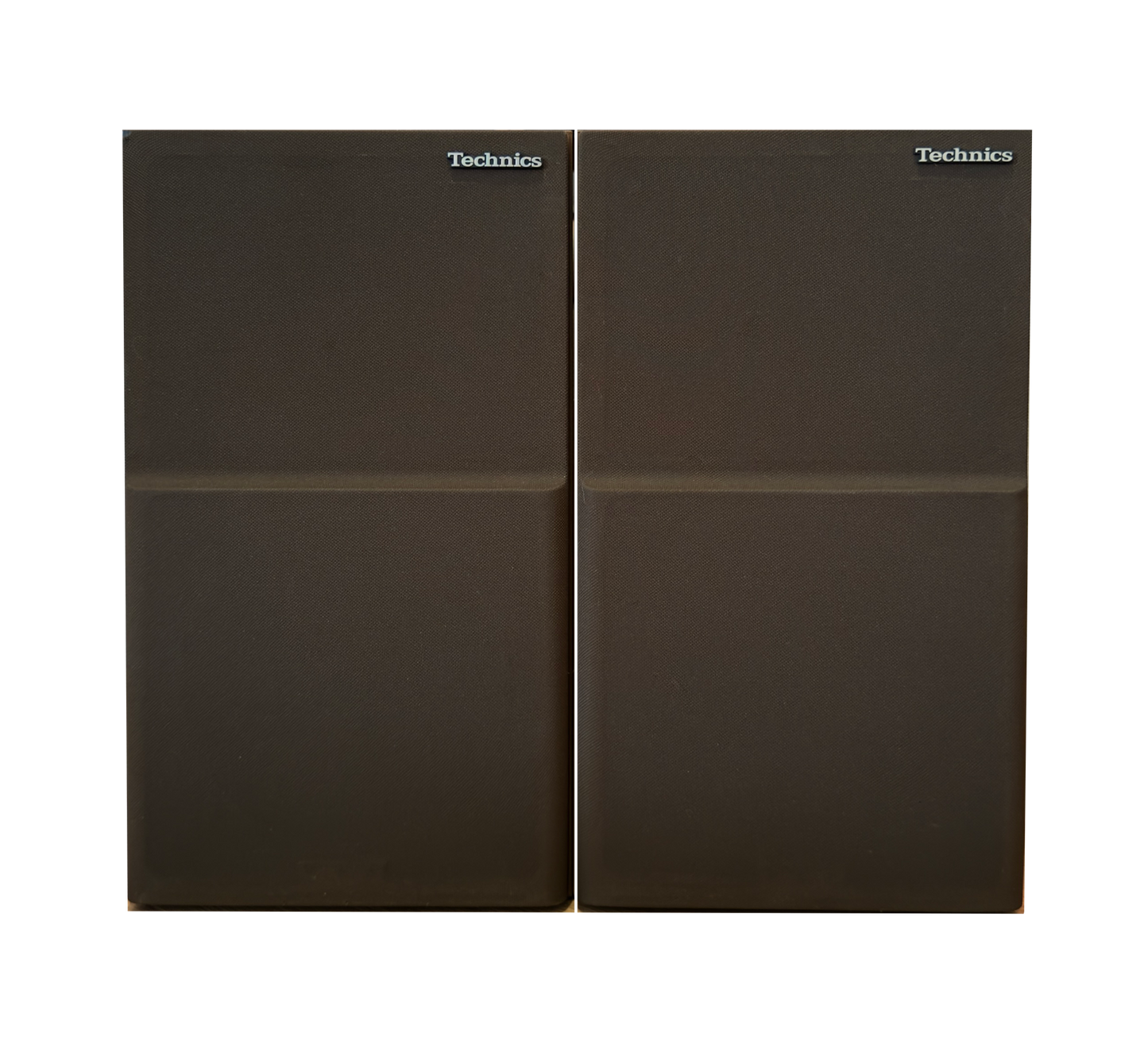

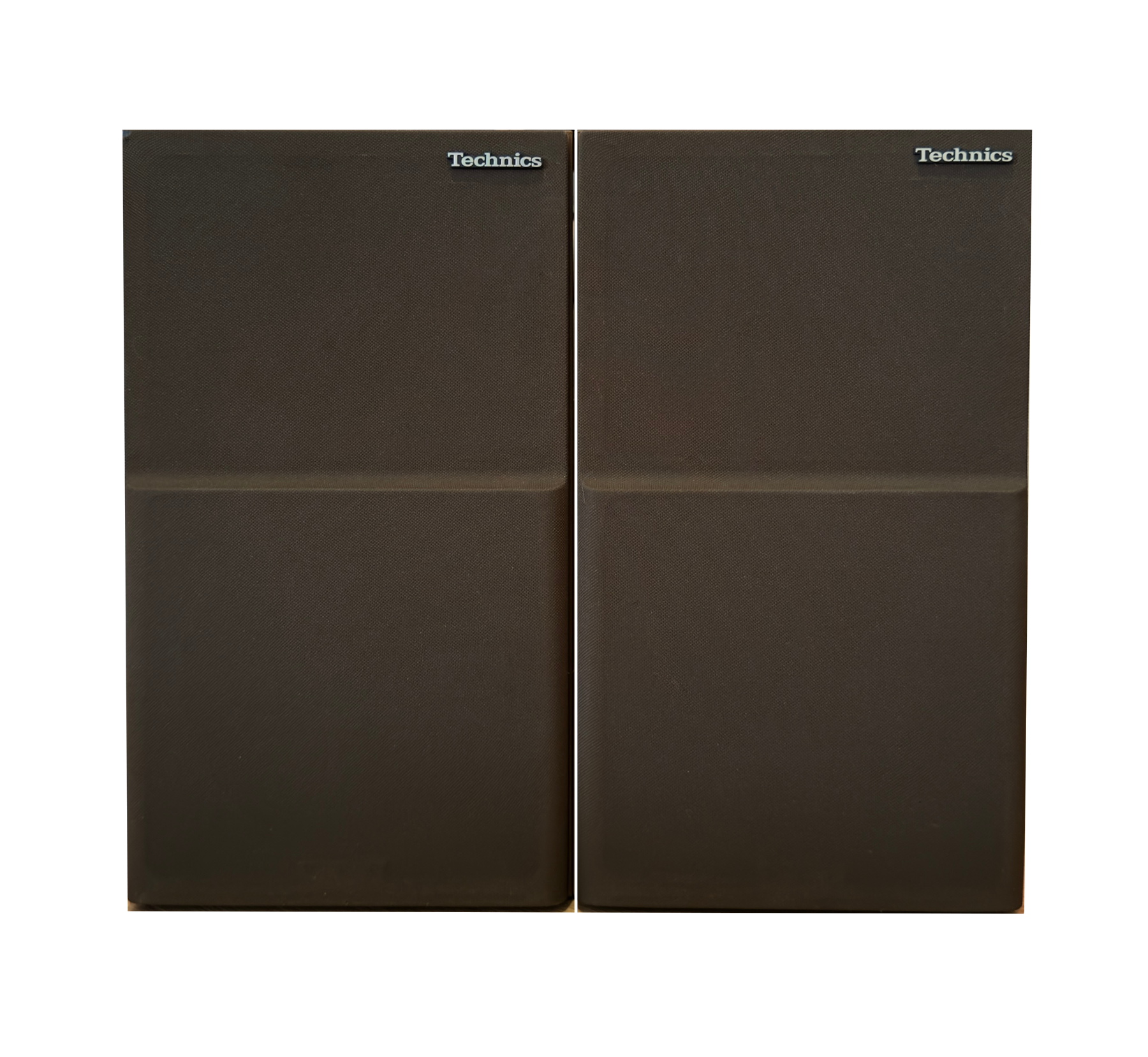

• Elegant Cabinet Design: The enclosure boasts a cherry wood finish with a matte silver metallic front baffle, complemented by a dark brown grille, blending seamlessly into various interior décors.

Specifications

• Type: 2-way, 2-driver bass reflex bookshelf speaker

• Frequency Response: 44 Hz – 20 kHz

• Power Handling: 30W (DIN RMS), 50W (Peak)

• Impedance: 6 Ω

• Sensitivity: 88 dB/W/m

• Crossover Frequency: 2.5 kHz

• Dimensions (W x H x D): 265 x 458 x 240 mm

• Weight: 8 kg

Condition

These speakers are in excellent condition, with all original components intact. The cabinets show minimal signs of wear, and the drivers are fully functional, delivering the warm and detailed sound that Technics is renowned for.

Experience the timeless quality and precision engineering of the Technics SB-X1—a true classic for audiophiles and vintage audio enthusiasts alike.
